Male To Female Fiber Optic Attenuator SC APC Attenuator Singlemode 10dB

Name: Male To Female Fiber Optic Attenuator SC APC Attenuator Singlemode 10dB
Brand: GoreLink
Price: 1 USD

China Male To Female Fiber Optic Attenuator SC APC Attenuator Singlemode 10dB wholesale

Brand Name : GoreLink

Model Number : G62410

Certification : RoHS,REACH

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union,Paypal

Delivery Time : 1-3 Working days

Packaging Details : 1pcs/bag

Product Name : Fiber Optic Attenuator

Application : CATV

Connector Type : SC/APC

Fiber Type : Singlemode

Attenuation : 0-30dB

Part Number : G62410

Features : Low insertion loss and good durability

Attenuation level range : 0~30dB

Type : male to female attenuator

Repeatably : ≤0.2dbm

Wavelength : 1260 to 1650nm

Contact Now

Gorelink Fiber optic attenuators, also called optical attenuators, are passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself. They are used to reduce the power level of an optical signal of a fiber optic cable by up to 30 dB. A fiber optic attenuator is a device used to reduce the power of an optical signal within a fiber optic system. It offers low reflection, high mode stability and a variety of attenuation values. Generally, It is applied in single-mode systems, especially the long-haul DWDM network links, fiber optic attenuators are necessary for balancing the optical power during the transmission.

Applications

Network Testing and Troubleshooting:
Used to simulate real-world signal degradation or test receivers' tolerance to various levels of signal strength.
Helps simulate the signal loss that can occur in long-distance fiber links, allowing for easier simulation of real-world conditions.
Power Management: In fiber optic systems, there are certain devices (e.g., photodiodes, optical receivers) that can be damaged or distorted if exposed to too high of a signal. An attenuator ensures the signal is within the safe operational range for such equipment.
Calibration: When calibrating fiber optic systems (like optical amplifiers), attenuators are used to reduce the input power to a manageable level, ensuring that the equipment operates within optimal parameters.
Telecommunication Networks: In long-haul transmission or metropolitan area networks (MANs), fiber optic attenuators are used to adjust power levels and reduce the risk of overloading the receiver.
Wavelength Division Multiplexing (WDM): Attenuators are often used in WDM systems to balance the power levels of different wavelengths that are multiplexed onto a single fiber.

General Specification

Fiber Mode	Singlemode
Connector Type	SC/APC
Structure	Plug-in(Male-Female)
Ferrule	Zirconia Ceramic
Operating Wavelength(nm)	1260~1620
Durability	500 times
Max Optical Input Power	200mW
Return Loss	>60dB
Operating Temperature (°C)	-20 ~ +75
Storage Temperature (°C)	-40 ~ +85

Fixed Customized Singlemode Fiber Optic Attenuator

The Optical attenuator has precise attenuation values, low PDL, low insertion loss and fine reflection polishing.

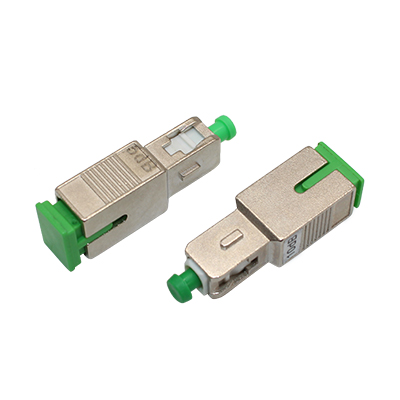

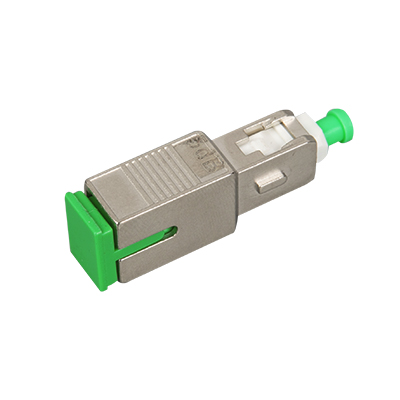

Male To Female Fiber Optic Attenuator SC APC Attenuator Singlemode 10dB

Zirconia Ceramic Ferrule

Precision polishing for reduced back reflection

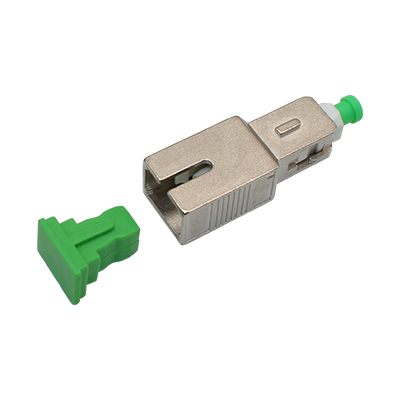

Protective Dust Cap

Prevent the attenuator from dust and keep it clean

Durable Metal Shell

Protect the core insert from external damage

Download Datasheet

SC/APC Fiber Optic Attenuator

Ordering Information

PART NO.	DESCRIPTION
G62403	GoreLink Plug-in Fiber optic attenuator,SC/APC SM Metal,3dB
G62405	GoreLink Plug-in Fiber optic attenuator,SC/APC SM Metal,5dB
G62408	GoreLink Plug-in Fiber optic attenuator,SC/APC SM Metal,8dB
G62410	GoreLink Plug-in Fiber optic attenuator,SC/APC SM Metal,10dB
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com .
